400 HP 8X4 Shacman F3000 Tipper Truck for and Durable Performance in Tough Environments

Name: 400 HP 8X4 Shacman F3000 Tipper Truck for and Durable Performance in Tough Environments
Brand: Shacman
Price: 42 USD

Wholesale 400 HP 8X4 Shacman F3000 Tipper Truck for and Durable Performance in Tough Environments from china suppliers

Condition : New

Steering : Left

Horsepower : 351 - 450hp

Emission Standard : Euro 3

Brand Name : Shacman

Place of Origin : Shanxi, China

Segement : Heavy truck

Market Segement : Engineering transportation

Fuel Type : Diesel

Engine Capacity : > 8L

Cylinders : 12

Gear Box Brand : FAST

Transmission Type : Manual

Forward Shift Number : 12

Reverse Shift Number : 2

Maximum Torque(Nm) : ≥2500Nm

Dimensions (L x W x H) (mm) : 10600 X2550 X3400 MM

Cargo Tank Dimension : 7600X2300X1500 MM

Cargo Tank length : 6.2-8m

Gross Vehicle Weight : 20-25T

Capacity (Load) : 31 - 40T

Fuel Tank Capacity : 300-400L

Drive Wheel : 8X4

Passengers : 3

Driver's Seat : Normal

Rear Camera : None

Cruise Control : None

ABS(Antilock Braking System) : Yes

ESC(Electronic Stability Control System) : None

Touch Screen : None

Multimedia System : None

Window : Manual

Air Conditioner : Manual

Tire Number : 12

After-sales Service Provided : Video technical support, Online support

Product name : Shacman 8X4 Dump Truck

Engine : WP10.400E32

Driving type : 8x4 Left Hand Driving

Transmission : 10JSD180+QH50

Horse power : 400hp

Cabin : F3000 Cabin

Rear axle : 16T MAN Double Reduction 5.262

Wheel base : 1400+3500+1350mm

Loading capacity : 30-40 Tons

Application : Construction Industry

Port : Tianjin, shanghai, Qingdao

Supply Ability : 5000 Unit/Units per Quarter

Price : $42,780.00/units 1-4 units

Contact Now

Products Description

400 HP 8X4 Shacman F3000 Tipper Truck for and Durable Performance in Tough Environments

Shacman 8X4 Dump Truck

1) WECHAI 400 HP Engine

2) MAN Technolodgy Axles

3) Stong , Effecient and Heavy Load

Details Images

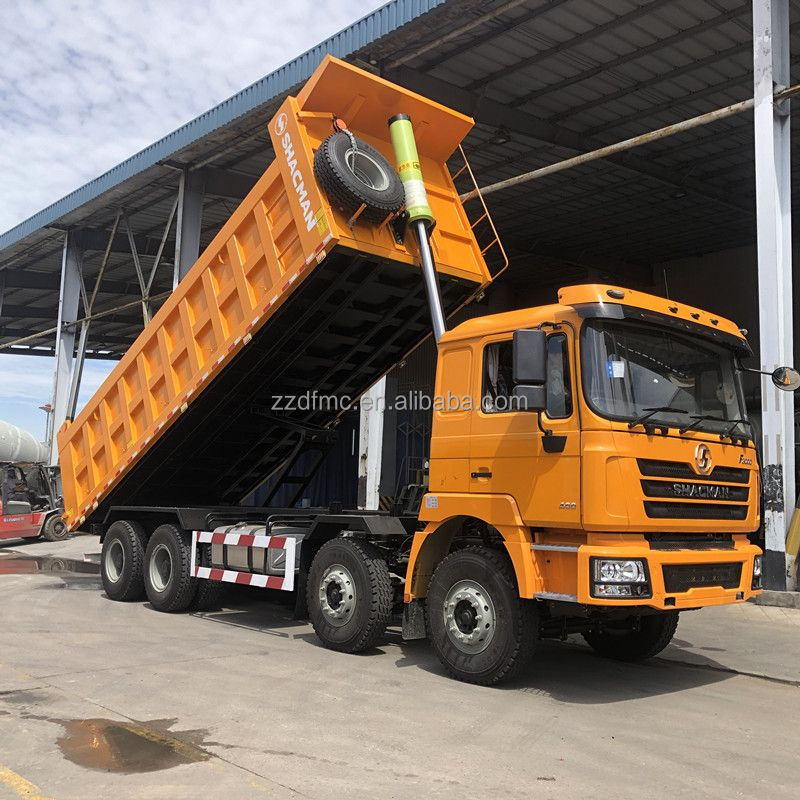

--HYVA Lifting Cylinder: Imported lift cylinders for faster lifting and more complete discharge.--Hydraulic lifting system: Middle lifting (HYVA front lifting is optional).

--Strong Body: 8MM Thick Box, Thickened bottom plate，More strong anti-weight.

--New Type Cab: Shacman F3000, Single sleeper with air conditioner, All-steel forward control.

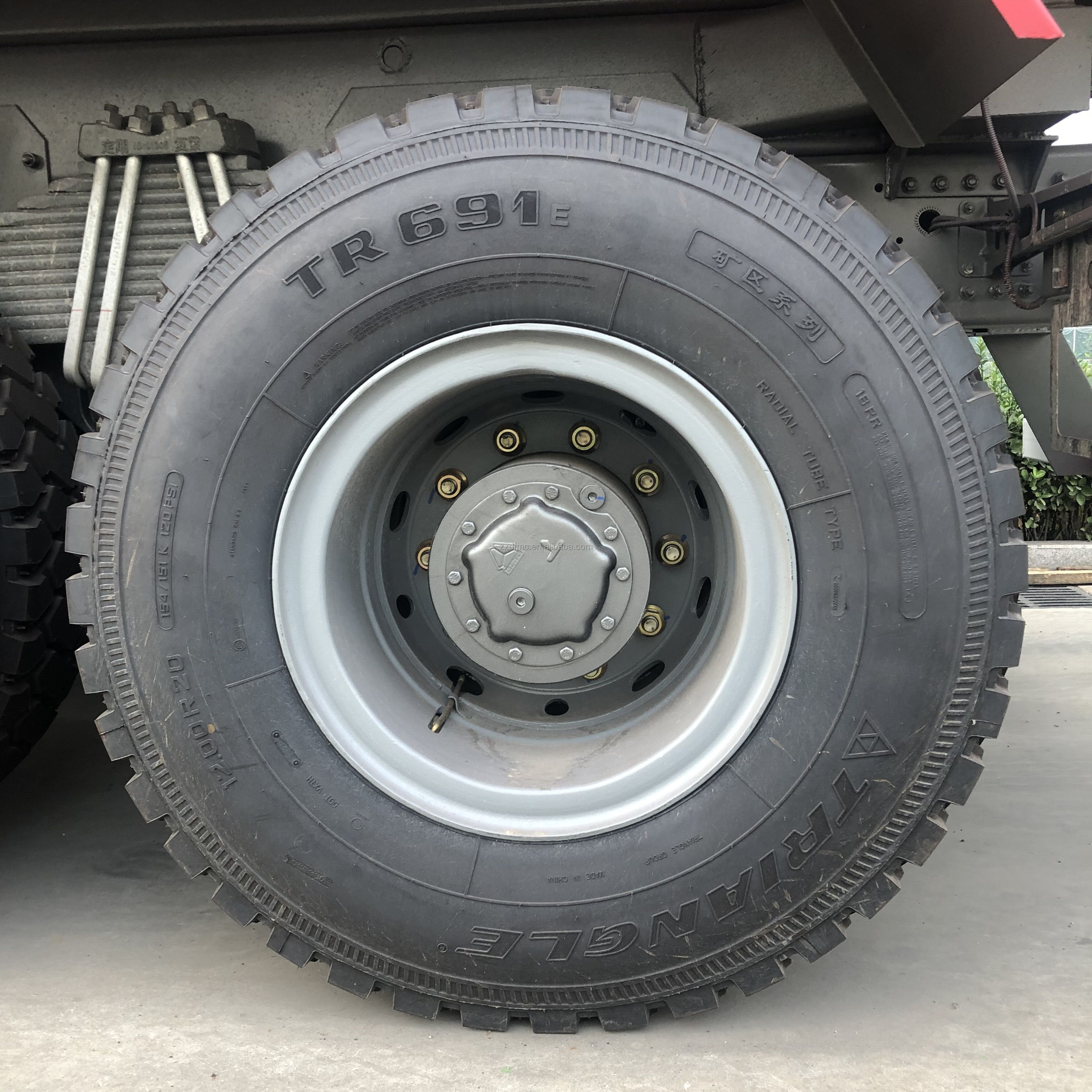

--Options for tires: 12.00-20 bias tire, 12.00R20 radial tire, 12R22.5 and 315/80R22.5 tubeless tire.

--Heavy-duty five-leaf spring: MAN Technolodgy heavy-duty axle for transporting gravel loads.

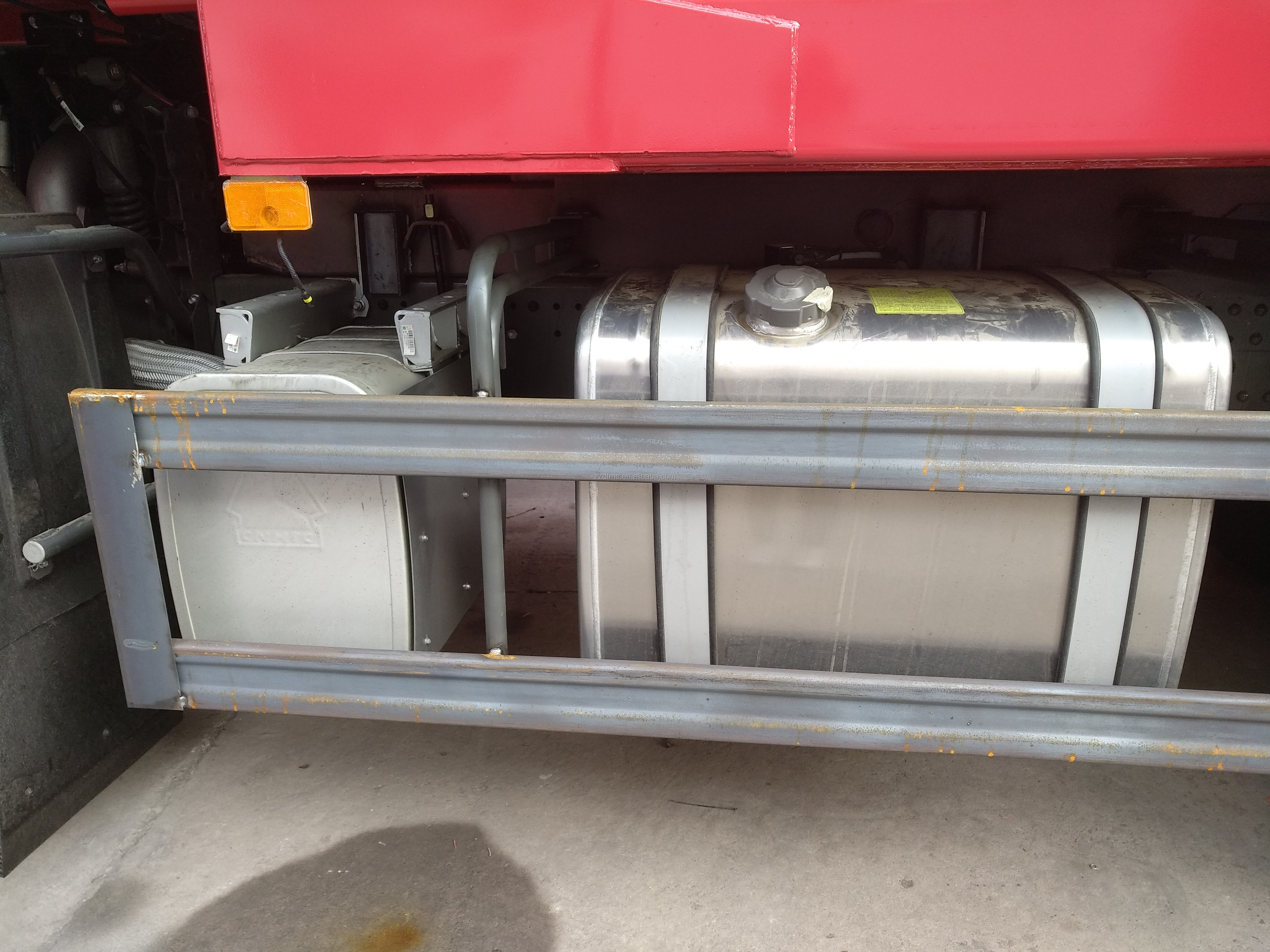

--Large-capacity fuel tank: The standard self-tilting truck fuel tank size is 300-400L, which supports customization.

--Truck body volume of 15cbm~20cbm, sand and gravels transportation normal type dump body, big stones and rocks transportation with rock type dump body.

Product Paramenters

Max. running speed (km/h) 最高车速				82
Drive System 驱动形式				8×4
Dimensions （LWH）(mm)		Overall 外部尺寸	10635×2490×3790
		Dump body 内部尺寸	7800×2300×1500+200
Thickness (mm) 厚度				Bottom 12, side 8 底12边8
Hydraulic lifting system 液压举升系统				Ф200 Before the lifting Ф200前举
Approach / departure angle (°) 接近角/离去角				28 / 20
Kerb weight (kg)自重				15500
Total mass (kg)总重				31000
Wheel base (mm) 轴距				1800+3575+1400
Engine 发动机				WEICHAI WP12.400E201 Euro Ⅱ 潍柴动力欧2排放
Horsepower 马力				400 hp
Gearbox 变速箱				FAST 10JSD180,法士特10档变速箱
Clutch 离合器				Ф 430 Diaphragm type Ф 430膜片离合式
Steering 转向机				ZF technology
Cab 驾驶室				F3000 mid-lengthened Cabin with single-sleeper F3000中长平顶驾驶室带单卧铺
Axle 桥	Front axle前轴		9.5T MAN
	Rear axle 后桥		16Ton MAN axle, final ratio 5.262 16吨曼双极桥，速比5.262
Tyre (radial tyre) 轮胎（钢丝胎）				12.00R20（12+1 备胎）
Oil tank 油箱				300L(Metal) 300L金属油箱
