Condition : New
Steering : Left
Horsepower : 451 - 500hp
Emission Standard : Euro 3
Brand Name : LGMG
Place of Origin : SHANGDONG
Segement : Heavy truck
Market Segement : Mining transportation
Engine Brand : WEICHAI
Fuel Type : Diesel
Engine Capacity : > 8L
Cylinders : 6
Gear Box Brand : FAST
Transmission Type : Manual
Forward Shift Number : 10
Reverse Shift Number : 2
Maximum Torque(Nm) : ≥2500Nm
Dimensions (L x W x H) (mm) : 8.45*2.5*3.4
Cargo Tank Dimension : 5.8*2.5*1.7
Cargo Tank length : 5.3-6.2M
Gross Vehicle Weight : 25-30T
Capacity (Load) : > 50T
Fuel Tank Capacity : 500-600L
Drive Wheel : 6x4
Passengers : 3
Driver's Seat : Normal
Rear Camera : None
Cruise Control : None
ABS(Antilock Braking System) : None
ESC(Electronic Stability Control System) : None
Touch Screen : None
Multimedia System : None
Window : Manual
Air Conditioner : Manual
Tire Number : 10
After-sales Service Provided : Video technical support, Online support
Model No. : MT86 MT106
Curb Weight (ton) : 23
Cargo Box Volume (m3) : 26 (5.9*3.2*1.5)
Max. Gradbility : 34%
Engine : WP13G530 530HP
Gearbox : FAST 8DS240C
Loading capacity : 60-70 ton
Tire : 14.00R25
Fuel Tank : 530L
Overall Dimension(LXWXH)(mm) : 9070 X 3550 X 3960
Packaging Details : Bulk ship
Port : Tianjin
Supply Ability : 100 Unit/Units per Month
Price : $90,160.00/units 1-2 units
Model No. | MT60 | ||
Curb Weight (ton) | 23 | ||
Payload (ton) | 50 | ||
Cargo Box Volume (m3) | Baffled box | 26 (5.9*3.2*1.5) bottom flange 16mm(NM400)+side flange 10mm (T700) | |
Max. Gradbility | 34% | ||
Max. Speed, km/h | Full loade | 44 | |
Empty load | 44 | ||
Axle Payload (KG) | Front Axle | 18000 | |
Middle and rear Axle | 25000+25000 | ||
Overall Dimension (mm) | 8720×3300×3960 | ||
Axle Numbers | 3 | ||
Tread (mm) | Front | 2470 | |
Middle+ Rear | 2252 | ||
Approaching Angle | 27° | ||
Departure Angle | 43° | ||
Min. Ground Clearance (mm) | 362 | ||
Wheel Base ( mm) | 3625+1450+1450 | ||
Engine | Model No. | WEICHAI WD12.420 | |
Emission | Euro II | ||
Cylinder Number | 6 | ||
Power (HP) | 420 | ||
Max. Torque (N.m) | 1750 | ||
Rated Rotation speed (r/min) | 2200 | ||
Displacement (ml) | 11,596 | ||
Clutch | Type | single-plate ,dry type,Hydraulic remote control | |
Friction Plate(OD/ID)(mm) | 430/242 | ||
Gearbox 7DS200 | Model No. | FAST 7DS200 | |
Gear | 7 Forward,1 Reverse |
![]() |

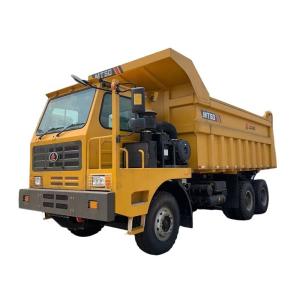

2 Reverse Shift MT60 MT86 MT106 Mining Truck 6X4 60-70 Ton Payload Off Road Tipper Truck Images |
